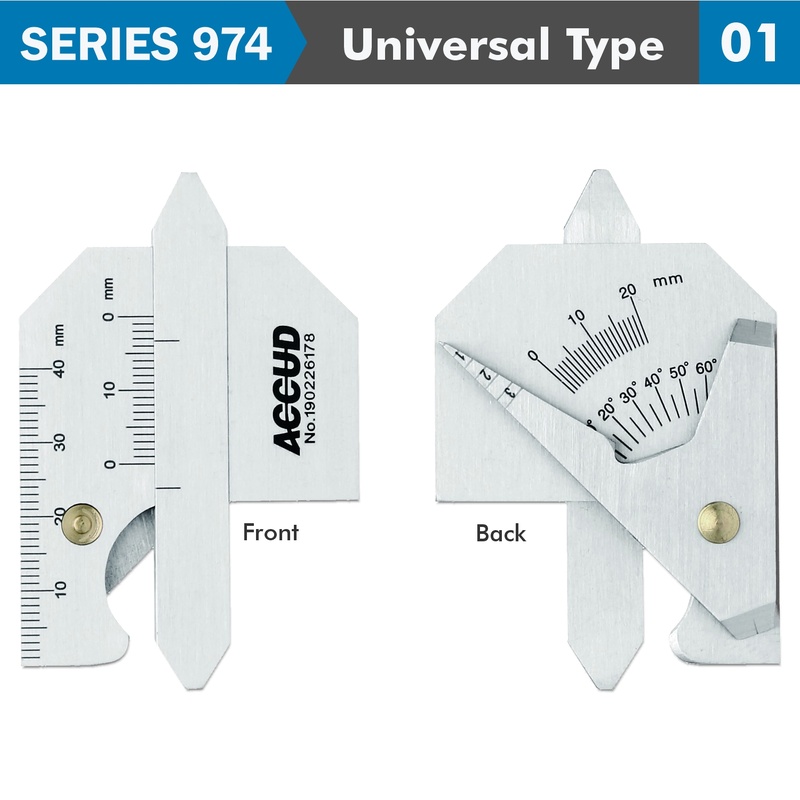

WELDING GAUGE 7 X MEASURING APPL. 10,20,1-35,40MM,60DEG RANGE S/STEEL

Key Features:

• Multiple measuring blades: Allows for measuring different parameters like bead width, depth, and undercut.
• Accuracy: Provides precise measurements for quality control.
• Durability: Built to withstand harsh industrial environments.
• Portability: Often has a compact design for easy carrying and use.

How to Use a Universal Welding Gauge:

1. Measure Leg Length: For fillet welds, place the gauge’s appropriate edge or cutout against the weld and check that the leg length meets the required specifications.

2. Check Throat Thickness: Use the gauge to measure the throat thickness by aligning it between the weld’s root and face.

3. Measure Weld Reinforcement: Place the gauge on the surface to check the weld reinforcement height, ensuring it’s within acceptable limits to prevent excess or insufficient material.

4. Check Angles: For V-groove or bevel welds, use the angle measurement feature to ensure the proper angle of the weld.

5. Undercut Depth Measurement: Position the gauge along the weld toe to measure any undercuts and verify that the depth is within allowable limits.

6. Measure Gaps (Fit-Up): Before welding, use the gauge to measure the gap between parts to ensure proper alignment and fit-up for strong joints.
