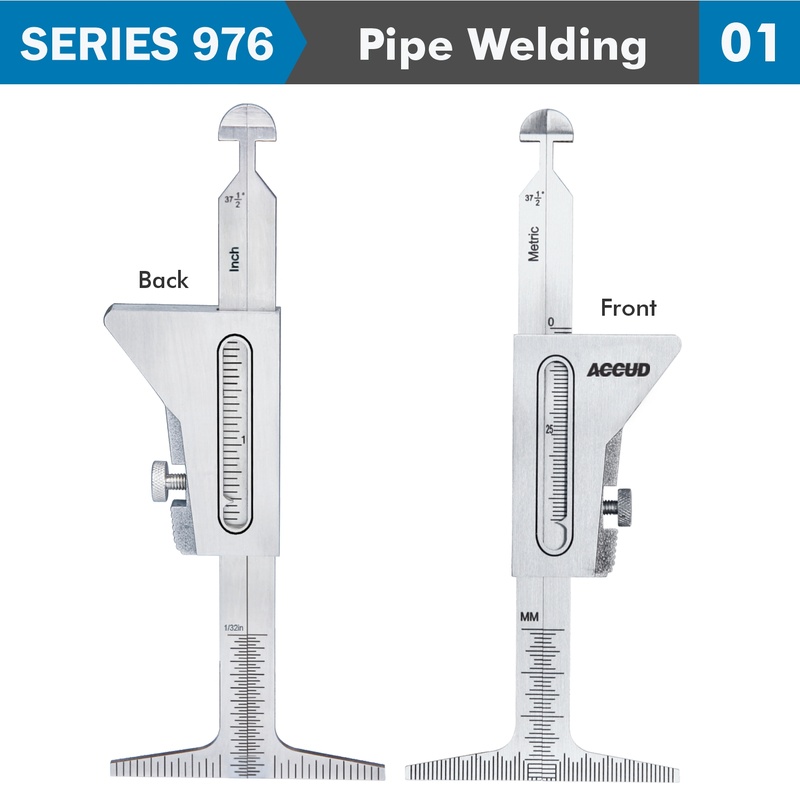

A Pipe Welding Gauge is a specialized tool designed to measure various dimensions and features of pipe welds, ensuring the quality, accuracy, and safety of the welds. It is used in industries such as oil and gas, shipbuilding, construction, and pipelines, where welding is critical to the integrity of the structure. The pipe welding gauge helps check parameters like root openings, alignment, and weld reinforcement, providing welders and inspectors with a reliable method for ensuring that welds meet required specifications and industry standards.
Weld Inspection:
Pipeline and Oil & Gas Industries:
Shipbuilding and Heavy Machinery:
Construction and Fabrication:
Training and Education:
Measure Weld Reinforcement: Place the gauge across the weld to check the height of the reinforcement. Ensure the reinforcement height is within the specified limits to avoid excessive material buildup.
Check Root Opening (Gap): Insert the appropriate section of the gauge between the pipe ends to measure the root opening before welding. Ensure that the gap is even and within the required range.
Pipe Alignment Measurement: Use the alignment feature to check if the two pipe sections are properly aligned. This ensures that the pipes are in the correct position for welding.
Hi-Lo Measurement: For internal alignment (hi-lo condition), insert the Hi-Lo gauge between the pipes to measure the internal mismatch. Proper alignment is essential for strong and smooth welds.
Check Undercut Depth: Use the gauge to measure the depth of any undercut along the weld toe. Ensure the undercut depth is within acceptable limits to prevent weakening of the joint.
A Pipe Welding Gauge is an indispensable tool for welders and inspectors involved in the construction and maintenance of pipelines, oil and gas facilities, shipbuilding, and other industries requiring high-quality pipe welding. Its ability to measure various dimensions such as reinforcement height, root gap, alignment, and undercut depth ensures that pipe welds meet strict safety and quality standards. With its durable design, multi-functional capabilities, and ease of use, the pipe welding gauge is essential for maintaining the integrity of welded pipe joints in demanding environments.
