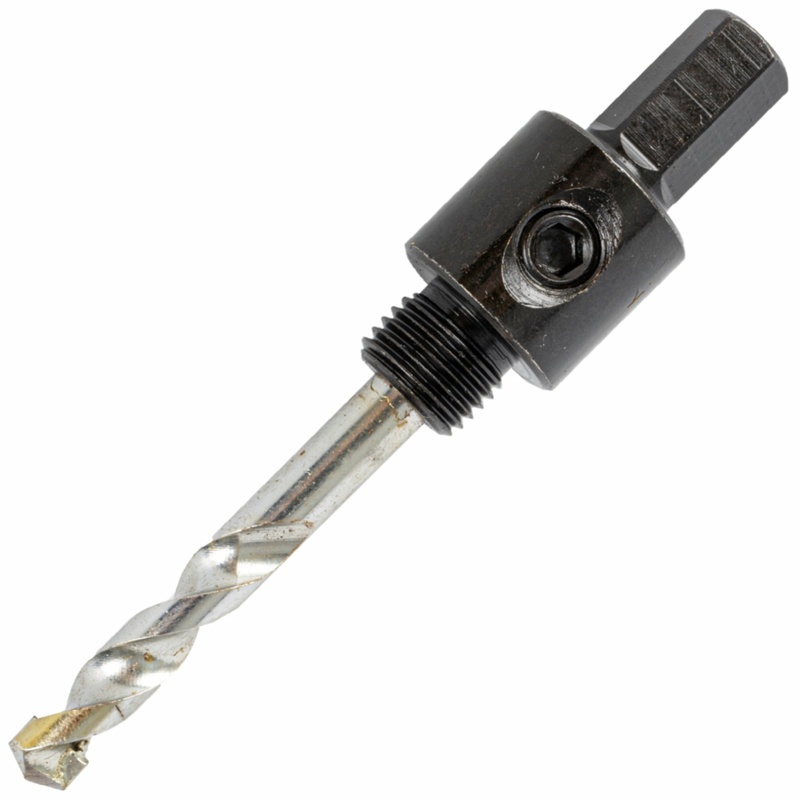

MANDREL DIAMOND COATED ARBOR 14-30MM

0 customer reviews / Write a review
  • Availability: In stock
  • Brand: TORK CRAFT
  • SKU: TC17002-3
Delivery Only
Delivery in 3-7 days at Hammerhead Hardware, Montague Gardens, 7441
  • Delivery to store for Pickup (3-5 working days)
  • Delivery to your address (3-7 working days)
Availability: In Stock
R118.15
R106.34
Mandrels / Pilot Drill Bits

Description Specification Reviews

Product Description

TorkCraft - Mandrel for Diamond Grit Hole Saws

For sizes: 14 - 30mm
Pilot Drill: 6.35mm
Shank: 3/8 HEX

Application:

The Tork Craft Mandrel for Diamond Grit hole saws, fits most different brands of Diamond grit hole saws, able to cut into plastics, ceramics, glass & granite. for hole saw sizes between 14 - 30 mm

  • First most Diamond grit hole saw brands
  • For hole saw sizes between 14-30mm
WARNING: Using any tool can be dangerous. Always select the right tool for the job.

Product Information

General

UPC / Barcode
TC17002-3
Product Type
Main
Price (excl. tax)
R118.15
Price (excl. tax)
R118.15
Tax
R0.00
Availability
In stock (466 available)
Online Only
Delivery / Pick up
Delivery Only
Delivery in 3-7 days at Hammerhead Hardware, Montague Gardens, 7441
  • Delivery to store for Pickup (3-5 working days)
  • Delivery to your address (3-7 working days)
Extra Info
Mandrel for hole saws

Using a hole saw:

To use a hole saw, you need the following accessories:

  • A portable drill or stationary drill with a 3 jaw chuck.
  • The correct mandrel and pilot drill for the material being drilled into.
  • The necessary safety equipment. Safety goggles, gloves and hearing protection.

IMPORTANT:
For the best results and for safety reasons, use the recommended rotation speed for the material being drilled into.

For longer hole saw life, use the following instructions:

  1. Use the correct mandrel for the diameter hole saw being used.
  2. Use pin-type mandrels for hole saws larger than Ø32mm. When mounting the mandrel, lift the pins up and then screw the mandrel down into the hole saw as far as it will go. It is important that the pins holes are securely located in the hole saw.
  3. Use the correct rotation speed. If the speed is too high or too low will have an effect on the cutting edge on the hole saw and decrease the life expectancy.
  4. Clear away wood chips or iron filings frequently to prevent the hole saw from overheating.
  5. Always apply the necessary pressure for the intended use. Too much pressure can destroy the teeth when cutting in metals.
  6. Keep the drill going straight to avoid binding the hole saw.

TIP:
When using a hole saw for wood, clamp an off-cut backing board on the back to prevent tear out when the hole saw exits the material. The backing board also prevents materials from flexing.

Rotation speed of hole saws (rpm):

DIA. MILD STEEL S. Steel CAST IRON BRASS ALU. WOOD
Ø 14mm 580 300 400 790 900 3000
Ø 16mm  550 275 365 730 825 3000
Ø 17mm 500 250 330 665 750 3000
Ø 19mm 460 230 300 600 690 3000
Ø 20mm 435 240 290 580 660 3000
Ø 21mm 425 210 280 560 635 3000
Ø 22mm 390 195 260 520 585 3000
Ø 24mm 370 185 245 495 555 3000
Ø 25mm 350 175 235 470 525 2700
Ø 27mm 325 160 215 435 480 2700
Ø 29mm 300 150 200 400 450 2700
Ø 30mm 285 145 190 380 425 2400
Ø 32mm 275 140 180 360 410 2400
Ø 33mm 260 135 175 345 390 2400
Ø 35mm 250 125 165 330 375 2400
Ø 37mm 240 120 160 315 360 2400
Ø 38mm 230 115 150 300 345 2400
Ø 40mm 220 110 145 290 330 2100
Ø 41mm 210 105 140 280 315 2100
Ø 43mm 205 100 135 270 305 2100
Ø 44mm 195 95 130 260 295 2100
Ø 46mm 190 95 125 250 285 2100
Ø 48mm 180 90 120 240 270 2100
Ø 51mm 170 85 115 230 255 2000
Ø 52mm 165 80 110 220 245 2000
Ø 54mm 160 80 105 210 240 2000
Ø 57mm 150 75 100 200 225 2000
Ø 59mm 145 75 100 195 225 2000
Ø 60mm 140 70 95 190 220 2000
Ø 64mm 135 65 90 180 205 1800
Ø 65mm 130 65 85 175 200 1800
Ø 67mm 130 65 85 170 195 1800
Ø 68mm 130 65 85 170 195 1800
Ø 70mm 125 60 80 160 185 1800
Ø 73mm 120 60 80 160 180 1800
Ø 76mm 115 55 75 150 170 1500
Ø 79mm 110 55 70 140 165 1500
Ø 83mm 105 50 70 140 155 1500
Ø 86mm 100 50 65 130 150 1200
Ø 89mm 95 45 65 130 145 1200
Ø 92mm 95 45 60 120 140 1200
Ø 95mm 90 45 60 120 135 1200
Ø 98mm 90 45 60 120 135 1200
Ø 102mm 85 40 55 110 130 1000
Ø 105mm 80 40 55 110 120 1000
Ø 108mm 80 40 55 110 120 900
Ø 111mm 80 40 50 100 120 900
Ø 114mm 75 35 50 100 105 900
Ø 121mm 70 35 45 95 95 900
Ø 127mm 65 30 45 90 90 800
Ø 133mm 65 30 45 90 90 800
Ø 140mm 60 25 40 85 85 800
Ø 146mm 60 25 40 85 85 800
Ø 152mm 55 25 35 75 75 800
Health and Safety
consider safety for your health and the people around you

General safety suggestions:

It is advisable to always have the following items nearby and in a good condition

  • Eye protection – clean and scratch free
  • Hearing protection – quality earmuffs
  • Dust masks – discard old and dirty masks
  • Gloves – for easy handling of material and hand protection
Wear Gloves Eye Protection Hearing Protection Dust Mask
Wear Gloves
Eye Protection
Hearing Protection
Dust Mask
Length
205.0
Width
60.0
Height
20.0
Weight
0.08
