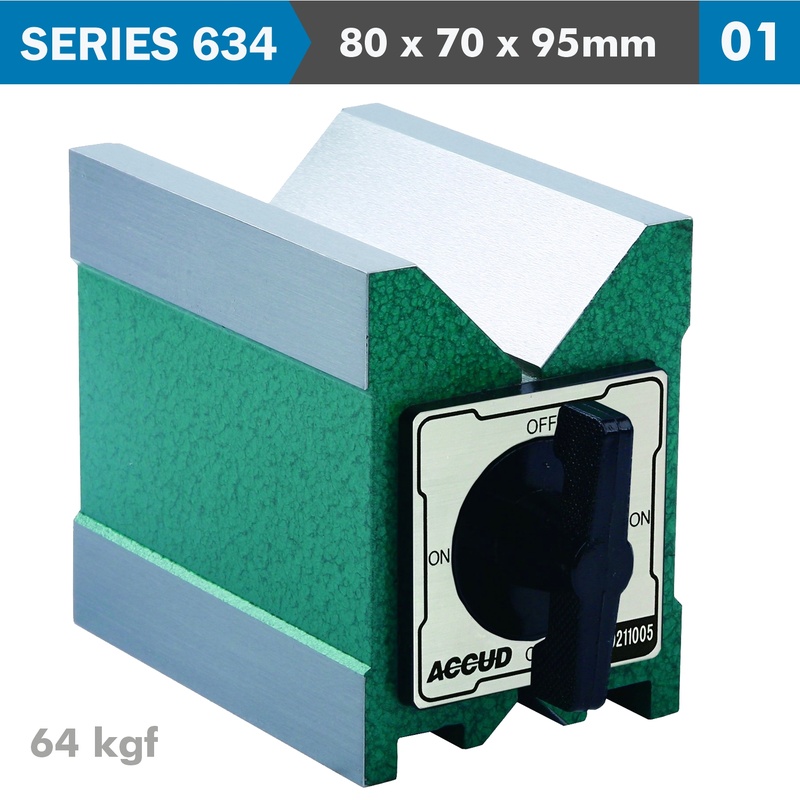

MAGNETIC V-BLOCK 80X70X95MM 64KGF

Advantages of a Magnetic V-Block

• Versatile Holding: Capable of holding a wide range of workpieces, including cylindrical, square, or irregular shapes, making it a versatile tool in any workshop.
• Strong Magnetic Grip: The magnetic base provides a powerful grip on ferrous surfaces, ensuring that the workpiece stays in place even during heavy machining operations.
• Precision and Stability: The precision-ground surfaces and V-grooves offer stable and accurate positioning, essential for high-precision tasks.
• Ease of Use: The on/off switch for the magnetic base allows for easy positioning and removal of the V-block, enhancing workflow efficiency.

Usage Procedure

1. Select the Appropriate V-Block: Choose a magnetic V-block that matches the size and shape of your workpiece.
2. Activate the Magnetic Base: Place the V-block on a ferrous surface and activate the magnet using the on/off switch to secure it in place.
3. Position the Workpiece: Place the workpiece in the V-groove, ensuring it is cradled securely by the V-block.
4. Lock the Workpiece: If needed, use additional clamps or fixtures to hold the workpiece in place within the V-groove.
5. Perform the Operation: Carry out the machining, grinding, or inspection operation while the workpiece is securely held by the magnetic V-block.
6. Deactivate the Magnet: Once the operation is complete, deactivate the magnetic base using the switch to release the block and remove the workpiece.

A magnetic V-block is an essential tool for machinists, inspectors, and precision engineers, providing a reliable and versatile solution for holding cylindrical and irregularly shaped workpieces during various operations. Its strong magnetic base, precision-ground surfaces, and ease of use make it invaluable in ensuring accuracy and stability in machining and inspection tasks.
