LOCK MORTISING ATTACHMENT WITH 17MM CUTTER

  • Availability: In stock
  • Brand: TORK CRAFT
  • SKU: EG1
Delivery Only
Delivery in 3-7 days at Hammerhead Hardware, Montague Gardens, 7441
  • Delivery to store for Pickup (3-5 working days)
  • Delivery to your address (3-7 working days)
Availability: In Stock
R5,177.90
R4,660.11

Product Description

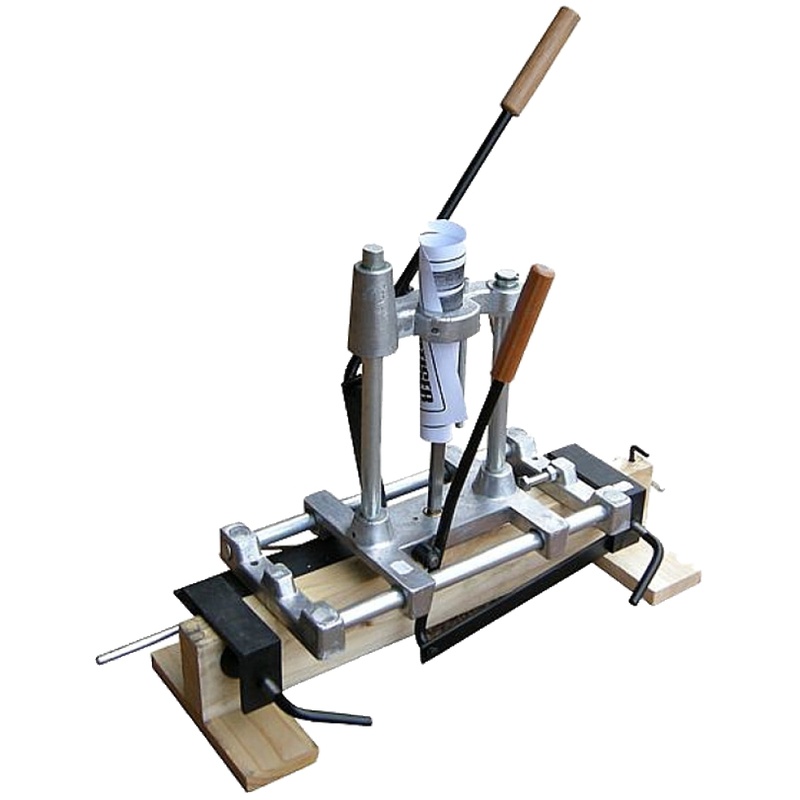

Lock mortising attachment

Jig to be used with an electric drill to bore out a mortise to fit a door lock.

Application:

The jig is clamped onto a door to cut a mortise for the fitment of a door lock.

A drill is attached to the jig with the following requirements:

  • The chuck needs to be removed to expose the 20UNF thread.
  • The drill will be clamped on the collar (ø46mm).
  • The drill will be part of the jig and will thus be a semi-permanent addition.

The cutting length and depth of cut can be adjusted to comply with the demands of various door lock sizes. The standard cutter supplied with the jig is a Ø17mm.


We recommend using a drill with low speed torque. For example a rotary drill without percussion having 20 UNF thread.

Accessories and spare parts for the EG1:

Cutters for the EG1:

Product Information

General

UPC / Barcode
EG1
Product Type
Main
Price (excl. tax)
R5,177.90
Price (excl. tax)
R5,177.90
Tax
R0.00
Availability
In stock (38 available)
Online Only
Delivery / Pick up
Delivery Only
Delivery in 3-7 days at Hammerhead Hardware, Montague Gardens, 7441
  • Delivery to store for Pickup (3-5 working days)
  • Delivery to your address (3-7 working days)
Length
645.0
Width
245.0
Height
245.0
Weight
14.84
