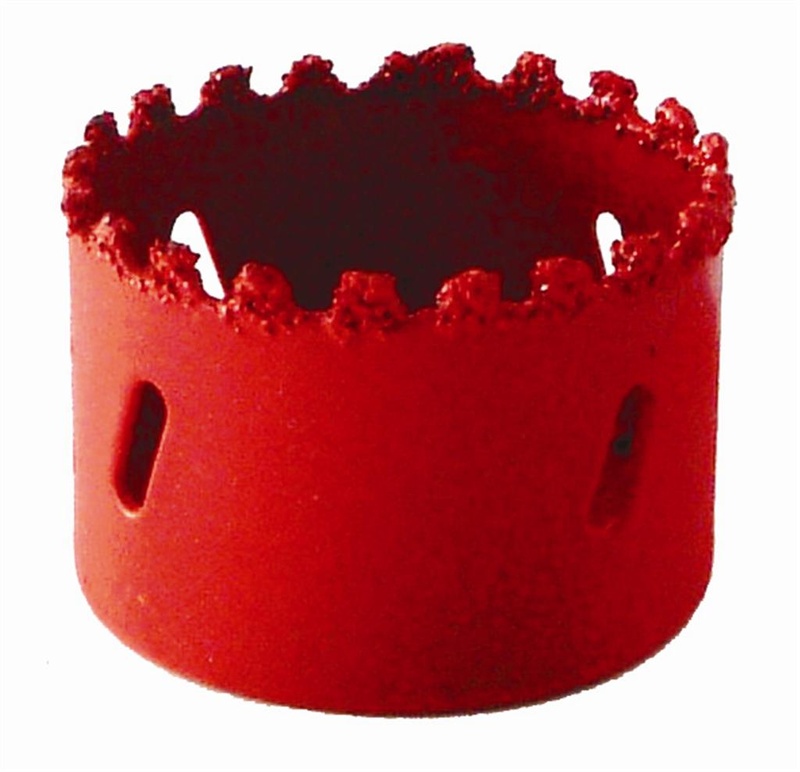

HOLE SAW CARBIDE GRIT 54MM - RED

Using a hole saw:

To use a hole saw, you need the following accessories:

• A portable drill with a 3 jaw chuck.
• The correct mandrel and pilot drill for the material being drilled into.
• The necessary safety equipment. Safety goggles, gloves and hearing protection.

IMPORTANT:
For the best results and for safety reasons, use the recommended rotation speed for the material being drilled into.

For longer hole saw life, use the following instructions:

1. Use the correct mandrel for the diameter hole saw being used.
2. Use pin-type mandrels for hole saws larger than Ø32mm. When mounting the mandrel, lift the pins up and then screw the mandrel down into the hole saw as far as it will go. It is important that the pins holes are securely located in the hole saw.
3. Use the correct rotation speed. If the speed is too high or too low will have an effect on the cutting edge on the hole saw and decrease the life expectancy.
4. Always apply the necessary pressure for the intended use.
5. Keep the drill going straight to avoid binding the hole saw.

Why use Carbide?

On the Mohs hardness scale, Tungsten Carbide is rated between 9 and 10. It is almost as hard as Diamond. The hole saw remains sharper for longer and it can be used to cut into many more materials.

Features:

• Strong design with a tough alloy body for added durability.
• Knock out holes for plug removal.
• Depth of cut:  38mm
• Carbide metal surface doesn't break off.
• Fast, aggressive cut in many materials with little effort.

consider safety for your health and the people around you
General safety suggestions: It is advisable to always have the following items nearby and in a good condition Eye protection – clean and scratch free Hearing protection – quality earmuffs Dust masks – discard old and dirty masks Gloves – for easy handling of material and hand protection
Wear Gloves	Eye Protection	Hearing Protection	Dust Mask

IMPORTANT:
Tilting the drill or hitting a nail with the hole saw while drilling could cause the hole saw to bind. The powerful torque could strain your wrist.
